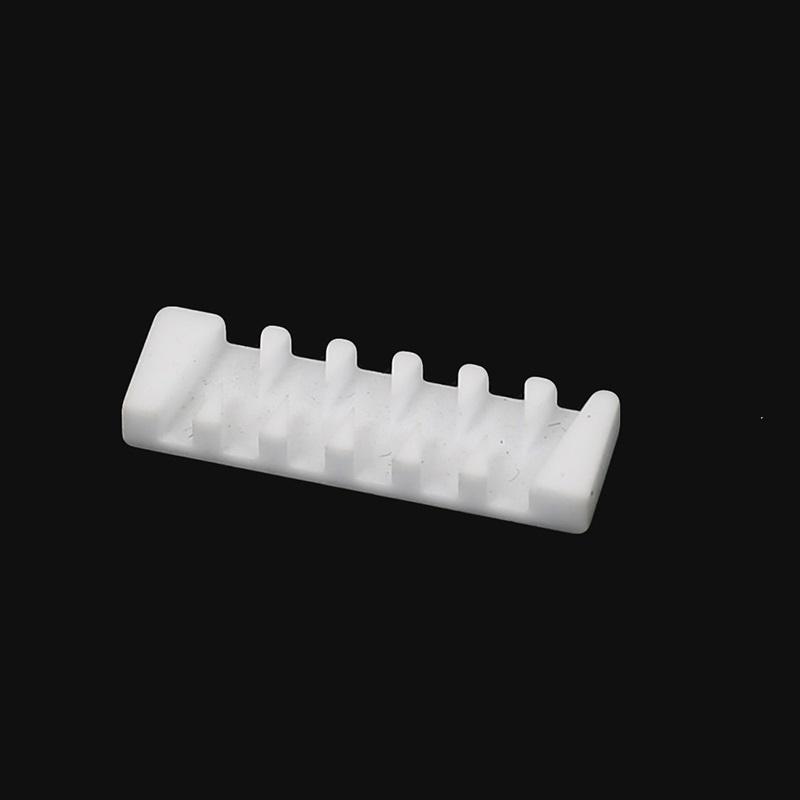

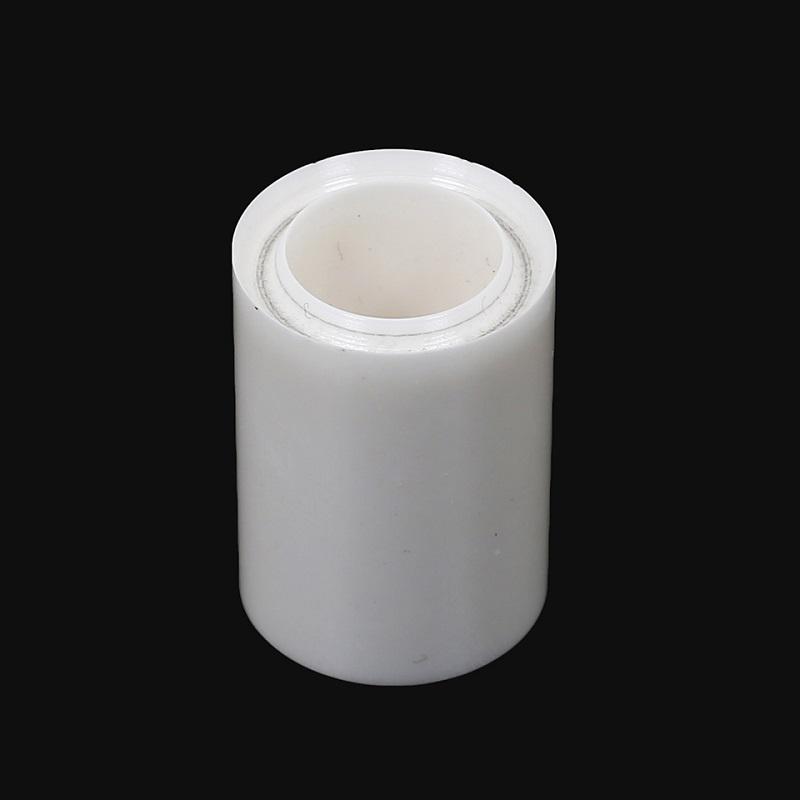

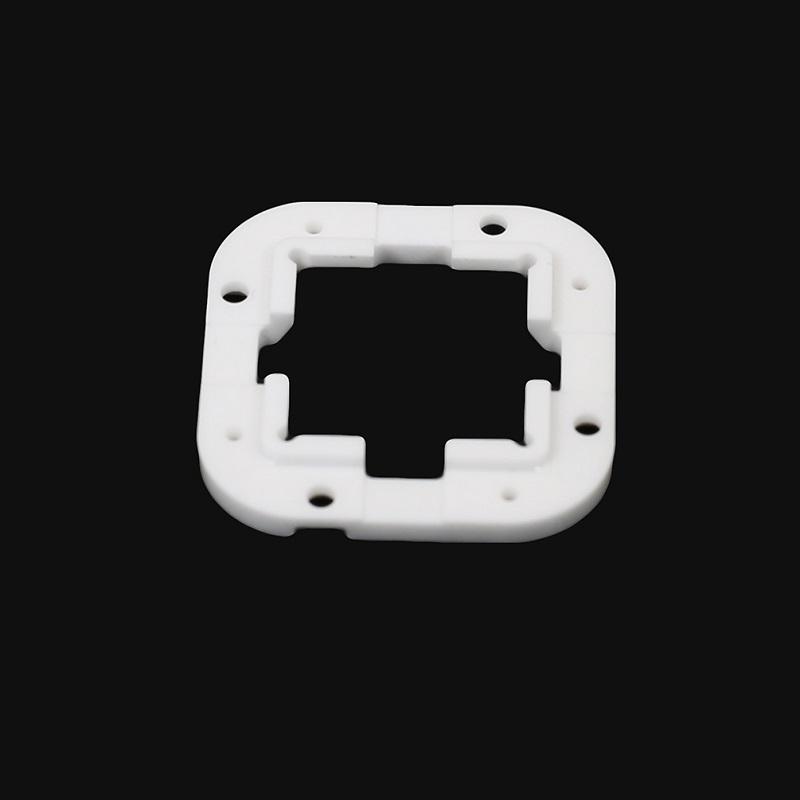

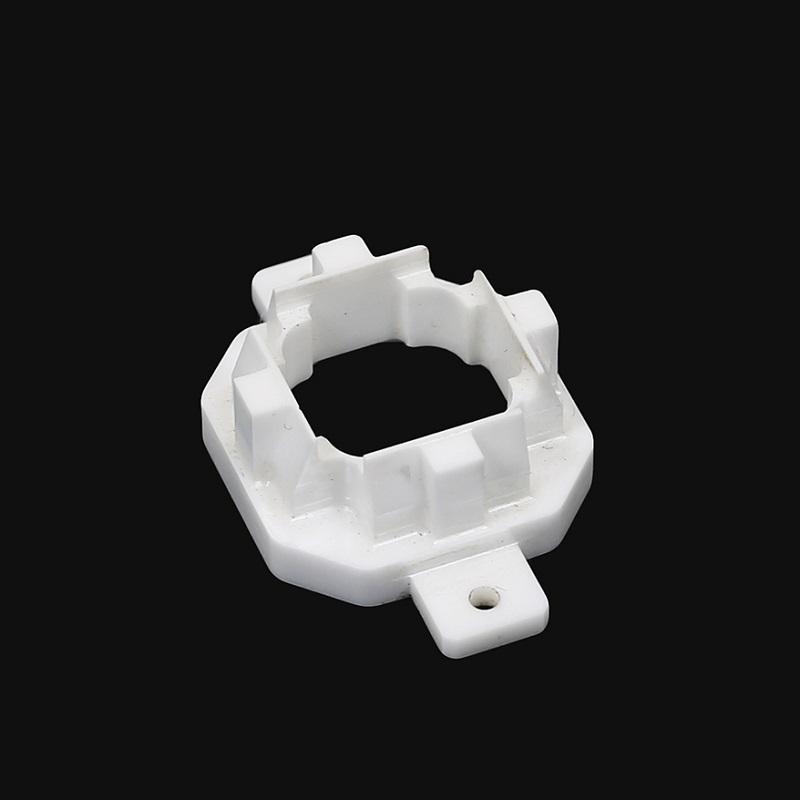

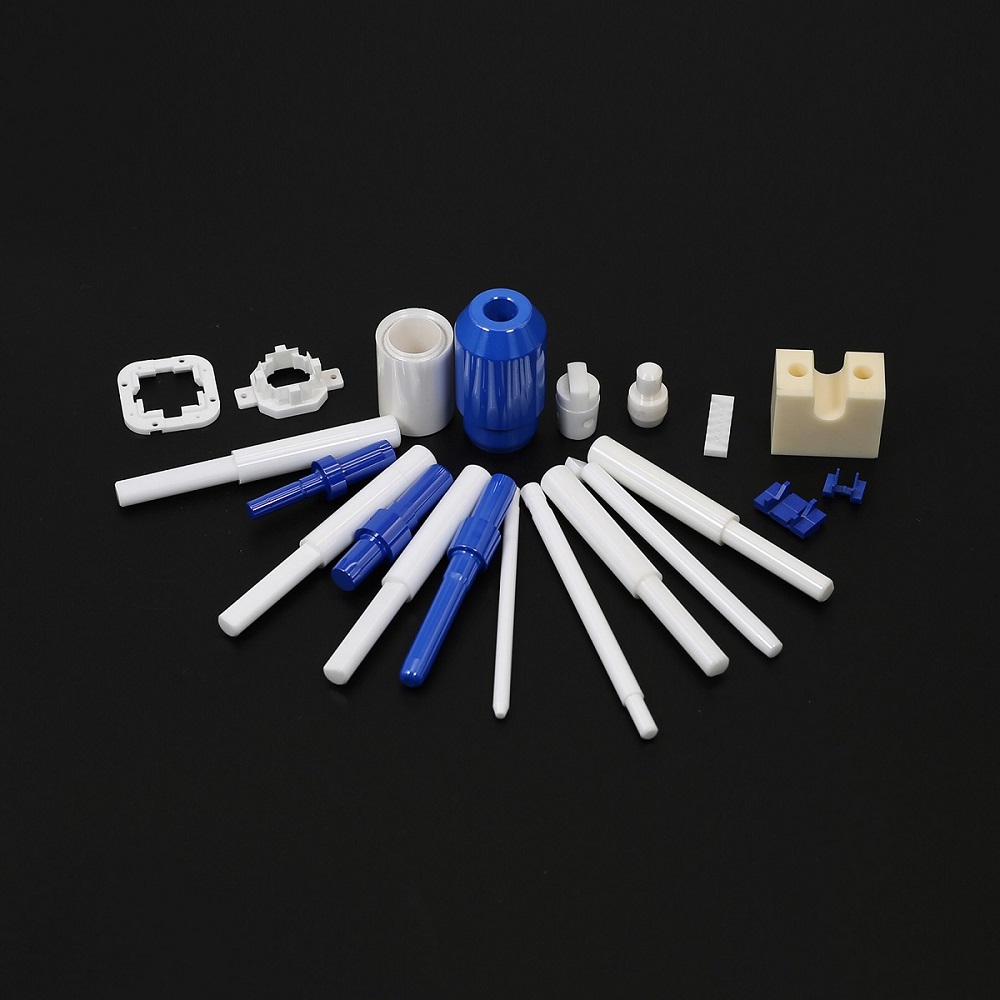

Customized automotive machinable ceramics parts

Precision punches and dies for stamping mold. Used in connector mold. Each tool is manufactured with exacting precision to ensure flawless performance, enhancing the quality and reliability of your connector molds.

Punches and dies are meticulously designed to meet the exact requirements of connector molds.  They are available in various shapes, sizes, and configurations to accommodate different connector component geometries.  The design incorporates features such as sharp cutting edges, clearance angles, and radii, all optimized to achieve precise and consistent results during the manufacturing process.

The use of ceramic materials in stamping die components offers benefits such as increased tool life, improved part quality, reduced maintenance and downtime, enhanced thermal stability, and resistance to wear, friction, corrosion, and electrical conductivity issues.

Precision tungsten carbide punches and die components are critical elements in the manufacturing and metalworking industry.  Their exceptional durability, accuracy, and versatility make them ideal for various applications that require high-quality hole punching, shaping, and cutting operations.  We focus on high precision stamping components over 17 years.

Punch and die work together to perform the punching or forming operations on materials such as metal sheets or plates.  Both the punch and die are made from high-quality tungsten carbide or tool steel and are designed to withstand the high forces and pressures encountered during the stamping process.

The surface finish of stamping die parts is critical to extending tool life and improving the overall productivity and efficiency of stamping operations. For these parts, the whole profile area finished by PG only.

The precision tungsten carbide punch for connector molds is a critical component that guarantees precise and accurate hole creation, durability, and resistance to wear and high temperatures.   By incorporating this high-quality punch into connector mold designs, manufacturers can achieve reliable and efficient production of connectors that meet the stringent requirements of various industries.

Mold parts with coatings offer numerous advantages, including improved durability, enhanced corrosion resistance, increased wear resistance, and improved aesthetics. These parts are designed to meet specific requirements and ensure optimal performance in their intended applications.Hong Yu also can provide kinds of coating parts.

Punches are crucial components in stamping die tooling, used for creating holes or shaping materials during the stamping process.  They are made from tungsten carbide or high-quality steel, carefully designed for specific applications, and require proper maintenance to ensure their longevity and precision.

The punch with utmost precision and dimensional accuracy to meet the tight tolerance requirements of connector production.  The surface finish and smoothness of the precision tungsten carbide punch are carefully controlled to minimize friction and improve the overall performance of the punch. So it enables efficient and consistent production of connectors.

The punch and die need precision machining to achieve the final dimensions and surface finish.   This may involve processes such as grinding, EDM (Electrical Discharge Machining), or wire cutting to create intricate features and precise contours on the parts.Quality control measures are essential to ensure the dimensional accuracy and functionality of the components.  This includes inspection and measurement techniques such as coordinate measuring machines (CMM) or optical measurement systems, as well as the use of precision gauges and inspection tools.

Punches and die are key components in motor core molds, facilitating the precise shaping and forming of laminations.  They are made from tungsten carbide or high-quality steels and feature customized designs to meet the specific requirements of the motor core.

The punches and die is critical to achieving accurate and consistent lamination shapes.   The punches are customized according to the specific motor core design, including the number of slots, their dimensions, and any additional features required.   The die is designed to match the punches and ensure precise alignment during the punching process.

Motor core dies are designed and manufactured using advanced machining techniques and high-quality materials to meet stringent tolerance requirements and withstand the demanding conditions of the molding process.

Motor mold components are typically made from tungsten carbide or high-strength tool steels to withstand the rigorous stamping process.  The molds are designed with precision to accommodate the specific motor component requirements, including tolerances, surface finishes, and part geometries.

Cavity inserts are the main components of the mold that define the shape and dimensions of the packaged IC. They are precision-engineered to accommodate the specific dimensions of the IC chip and its interconnections.  Cavity inserts are typically made from high-quality materials such as steel or tungsten carbide to ensure durability and dimensional accuracy.

In motor core dies for the manufacturing of motor stator and rotor laminations, punches play a crucial role in creating precise and accurate holes and shapes in the laminations. Customized punch designs may include round punches, rectangular punches, or specialized shapes according to the motor core design specifications.

Punch and die are an integral part of the can mold.   It consists of a punch and a die that work together to shape the pull tab.   The punch cuts out the desired shape, while the die provides the necessary support and precision for forming the tab.

Die inserts are removable components that fit into the stretching mold cavity and help form specific features of the product being stretched.  They can be customized to accommodate various shapes and sizes, allowing for flexibility in the manufacturing process.  Die inserts are usually made from materials with high thermal conductivity to facilitate efficient heat transfer during stretching.

Drawing dies are essential components used in the metal forming industry to shape and transform metal sheets or wires into desired shapes through a process called drawing.

Punch and dies are fundamental components in the transfer molding process for IC packaging.  Their accurate design, precise machining, and proper alignment contribute to the creation of well-formed and reliable IC packages.  As the semiconductor industry advances, ongoing developments in punch and die technologies enable the production of smaller, more sophisticated IC packages, supporting the growth of innovative electronics applications.

Can mold components are essential parts used in the manufacturing process of beverage can tabs or pull tabs.   These components play a crucial role in producing high-quality and reliable pull tabs that are easy to open.

Connectors are used to establish electrical connections between the sensor and external devices or systems.

Punches can widely used in the medical, such as manufacturing components such as casings, catheters, and fixtures for medical devices. By using precision punches, efficient, accurate, and repeatable stamping processes can be achieved, thereby improving product quality and production efficiency.

Tip concave spherical area is processed by PG can ensure that the surface roughness reaches Ra0.03 and the forming tolerance is controlled within 0.002mm.

The carbide blade is used in stamping parts for various purposes. It plays a crucial role in the stamping process by providing cutting, shearing, or piercing functions. These blades are commonly used in metalworking industries to shape and manipulate metal sheets or components.

Tungsten carbide blades are widely used in various industries, especially in the field of stamping and metalworking. The primary purpose of tungsten carbide blades is to provide precision cutting, shaping, and shearing of various materials.

Ceramics can offer outstanding advantages which make them the ideal choice of structural components for various industrial applications. We are able to supply a wide range of machined industrial ceramics in a wide variety of ceramic materials from machining blanks to formed shapes.

Incorporating ceramic parts in molds enhances their performance, resulting in improved product quality and prolonged mold.

Ceramic parts for engine components, exhaust systems, braking systems, and sensors.

The manufacturing of ceramic components involves a series of precise and specialized processes to transform raw ceramic materials into functional parts with desired shapes and properties.

ceramics parts manufacturing involves precision machining, grinding, polishing, and coating, depending on the application requirements.

Ceramic component manufacturing involves a sophisticated and meticulous process that transforms raw ceramic materials into durable, high-performance parts.
