Injection mold parts are produced through the mold-making process and are designed to meet the specific requirements and standards of the medical industry.
Item No :
P-009Order(MOQ) :
1PCProduct Origin :
Dong GuanLead Time :
7-10 working daysMaterial :
SKH51/SKD11/SKS3/SKD61Coating :
NoneSize :
CustomizedTolerance :
±0.002mmApplication :
Injection MoldMaterial Certification :
YesQC Report :
YesProducts Description:

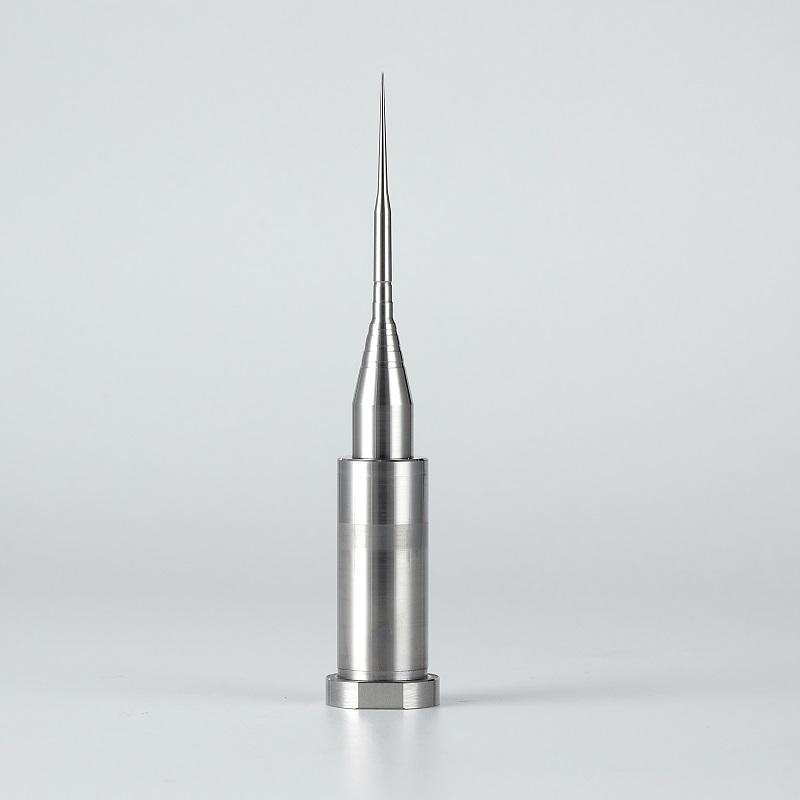

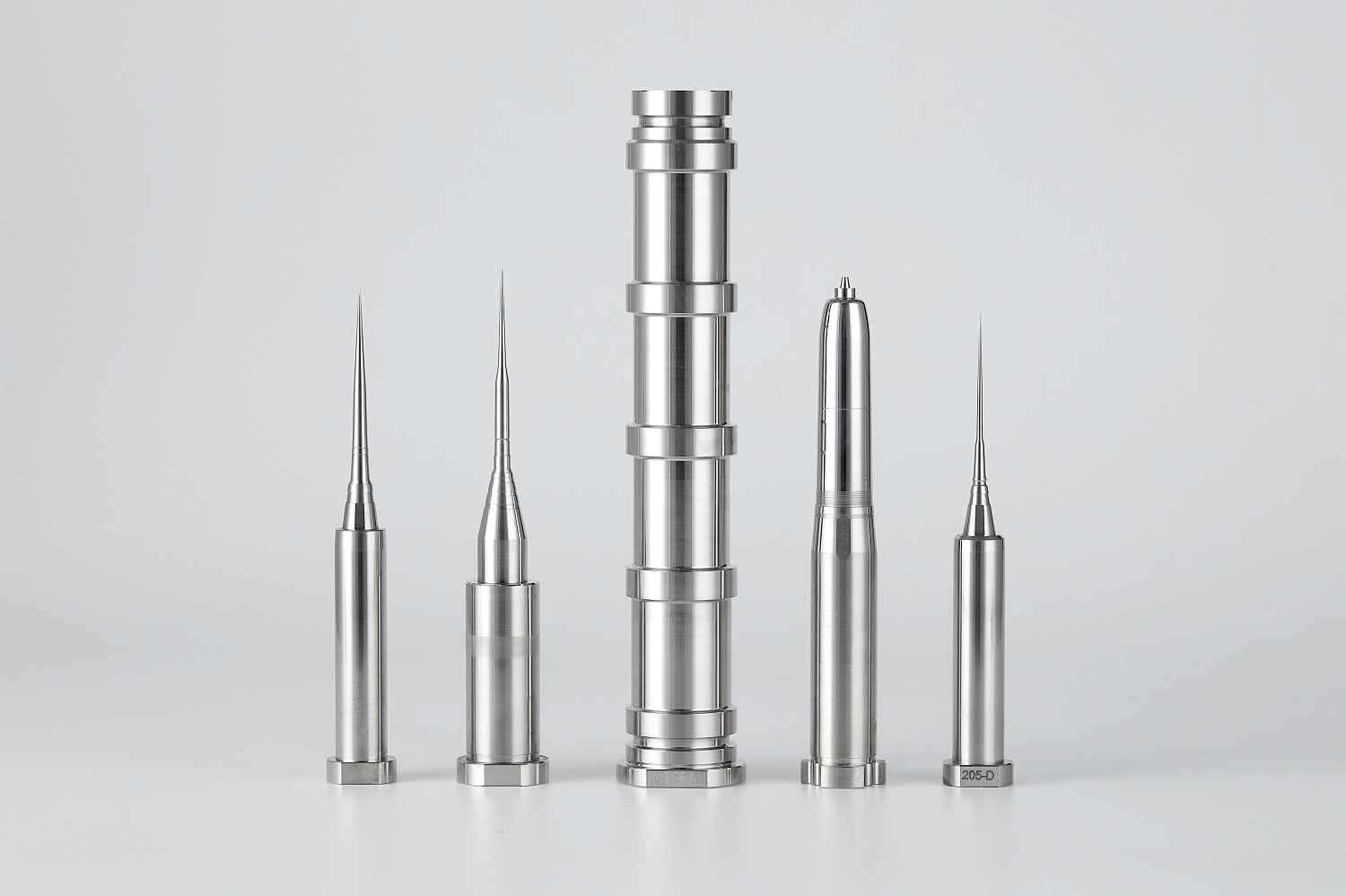

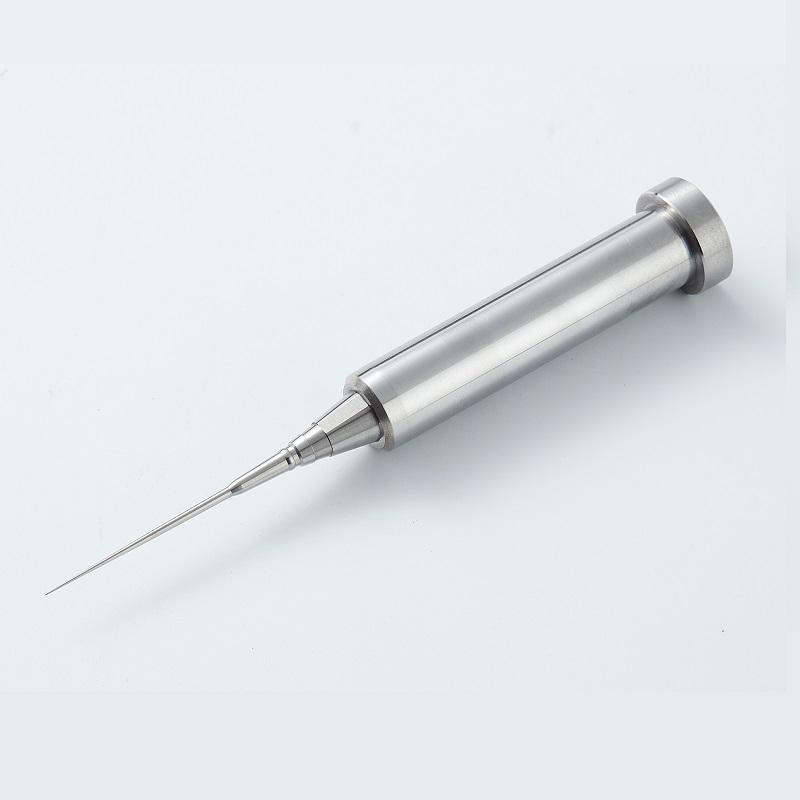

The manufacturing of precision core pins involves precision machining processes, such as CNC milling, grinding, and EDM (Electrical Discharge Machining), to achieve the desired dimensions and surface finish. The pins are produced with tight tolerances, typically in the range of micrometers, to ensure precise fitment and functionality.
Products Data:
| Material: | SKH51 |
| Size: | Customoized |
| Tolerance: | ±0.002mm |
| Processing Method: | Grinding |
| Finishing Roughness: | Ra0.05-Ra0.1 |
| Surface Treatment: | Lapping |
| Application: | Injection mold |
| Working Material: | Plastic |
Products Details:
More possible carbide materials:
| Grade | DIN EN | Hardness HRC | Brand |
| ASP60 | 66-69 | ASSAB | |
| ASP23 | 1.3344 | 63-65 | |
| UNIMAX | 54-56 | ||
| VANDIS 4 | 61-63 | ||
| VANDIS 10 | 62-64 | ||
| ASP2023 | 1.3344 | 62-66 | ASP ERASTEEL |
| ASP2060 | 67-69 | ||
| S290 | 67-69 | BOHLER | |
| S390 | 64-66 | ||
| S690 | 64-66 | ||
| K390 | 60-62 | ||
| HAP40 | 64-67 | HITACHI | |
| SKH51 | 1.3343 | 62-64 | |
| YXM1 | 62-64 | ||
| SKD11 | 1.2379 | 58-60 | |
| SKD61 | 1.2436 | 52-54 | |
| SLD-magic | 1.2379 | 60-62 | |
| GOA | 56-59 | DAIDO | |
| DC53 | 60-62 | ||
| DHA1 | 50-52 | ||
| 1.3207 | 62-64 | ||
| M2 | 1.3343 | 62-64 | |
| CPM10V | 58-62 |
What else can we do for you?
Tags :
The Injection Molded Part is a high-quality component designed and produced using advanced injection molding techniques. It is a vital part of many industrial applications and offers various advantages in terms of strength, precision, and cost-effectiveness.
Injection molding is a popular method used to manufacture precise and intricate medical components. By employing advanced manufacturing techniques, we can produce high-quality medical mold parts that meet the evolving demands the healthcare industry.
Injection mold parts are produced through the mold-making process and are designed to meet the specific requirements and standards of the medical industry.
Injection molding tooling is a precise and intricate process. From initial concept to final production through injection molding machines, each step in the tooling manufacturing process plays a crucial role in ensuring quality, reliability, and efficiency.
The manufacturing of injection molding tooling is a precise and intricate process. From initial concept to final production through injection molding machines, each step in the tooling manufacturing process plays a crucial role in ensuring quality, reliability, and efficiency.
