CNC machining offers numerous advantages for the production of automated parts in molds, including high precision, repeatability, and the ability to work with a wide range of materials.
Fixture manufacturing can be found in a variety of industries such as automotive, aerospace, electronics, pharmaceuticals, and manufacturing. Fixtures play a crucial role in ensuring consistency, accuracy, and efficiency in production processes.
Item No :
F-003Order(MOQ) :
1SETProduct Origin :
Dong GuanLead Time :
12-15 working daysMaterial :
SteelCoating :
NoneSize :
CustomizedTolerance :
±0.002mmApplication :
IndustrialMaterial Certification :
YesQC Report :
YesProducts Description:

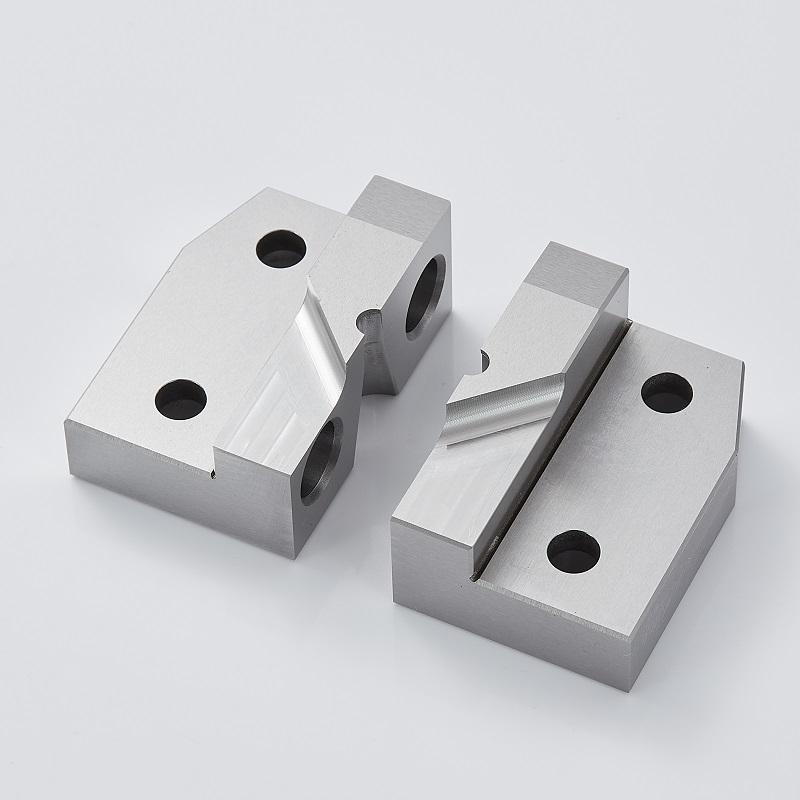

Grinding fixtures hold workpieces during grinding operations to achieve precise dimensional accuracy and surface finish. They securely clamp the workpiece in place while the grinding wheel removes material to meet specific requirements.
Products Data:
| Material: | SKH51 |
| Size: | Customoized |
| Tolerance: | ±0.002mm |
| Processing Method: | Grinding/milling |
| Finishing Roughness: | Ra0.05-Ra0.1 |
| Surface Treatment: | Lapping |
| Application: | Industrial Equipment |
Products Details:
More possible steel materials:
| Grade | DIN EN | Hardness HRC | Brand |
| ASP60 | 66-69 | ASSAB | |
| ASP23 | 1.3344 | 63-65 | |
| UNIMAX | 54-56 | ||
| VANDIS 4 | 61-63 | ||
| VANDIS 10 | 62-64 | ||
| ASP2023 | 1.3344 | 62-66 | ASP ERASTEEL |
| ASP2060 | 67-69 | ||
| S290 | 67-69 | BOHLER | |
| S390 | 64-66 | ||
| S690 | 64-66 | ||
| K390 | 60-62 | ||
| HAP40 | 64-67 | HITACHI | |
| SKH51 | 1.3343 | 62-64 | |
| YXM1 | 62-64 | ||
| SKD11 | 1.2379 | 58-60 | |
| SKD61 | 1.2436 | 52-54 | |
| SLD-magic | 1.2379 | 60-62 | |
| GOA | 56-59 | DAIDO | |
| DC53 | 60-62 | ||
| DHA1 | 50-52 | ||
| 1.3207 | 62-64 | ||
| M2 | 1.3343 | 62-64 | |
| CPM10V | 58-62 |
Using jigs and fixtures in manufacturing processes offers several key advantages:
Improved Productivity: Jigs and fixtures streamline production workflows, reducing setup times and increasing machining efficiency.
Enhanced Accuracy and Precision: By providing consistent guidance and support, jigs and fixtures ensure precise alignment and repeatability of machining operations, resulting in higher-quality finished products.
Cost-effectiveness: The use of jigs and fixtures reduces scrap and rework by minimizing errors, leading to cost savings in material and labor.
Improved Safety: Jigs and fixtures enhance workplace safety by securely holding workpieces in place during machining, reducing the risk of accidents and injuries caused by manual handling or improper positioning.
What else can we do for you?
Tags :
CNC machining offers numerous advantages for the production of automated parts in molds, including high precision, repeatability, and the ability to work with a wide range of materials.
Automated mold components play a crucial role in the manufacturing industry, specifically in the field of automated molding processes.
In the context of automated mold parts, CNC machining is employed to fabricate various components with high precision and repeatability.
In the realm of component machining, automation can be applied to a wide range of processes, such as cutting, milling, turning, drilling, grinding, and finishing.CNC machines can perform complex operations with high accuracy, repeatability, and speed, thereby reducing human errors and increasing overall productivity.
A fixture clamp, also known as a workholding fixture, is a tool used in manufacturing and machining processes to securely hold a workpiece in place during various operations. It is an essential component of industrial tooling and is commonly used in industries such as automotive, aerospace, and general manufacturing.
Fixtures are devices or tools that are used to hold, support, position, or guide other objects or workpieces during manufacturing, assembly, inspection, or testing processes.
Fixture manufacturing can be found in a variety of industries such as automotive, aerospace, electronics, pharmaceuticals, and manufacturing. Fixtures play a crucial role in ensuring consistency, accuracy, and efficiency in production processes.
