CNC machining offers numerous advantages for the production of automated parts in molds, including high precision, repeatability, and the ability to work with a wide range of materials.
Fixtures are devices or tools that are used to hold, support, position, or guide other objects or workpieces during manufacturing, assembly, inspection, or testing processes.
Item No :
F-002Order(MOQ) :
1PCProduct Origin :
Dong GuanLead Time :
10-12 working daysMaterial :
SteelCoating :
NoneSize :
CustomizedTolerance :
±0.002mmApplication :
Industrial machineMaterial Certification :
YesQC Report :
YesProducts Description:

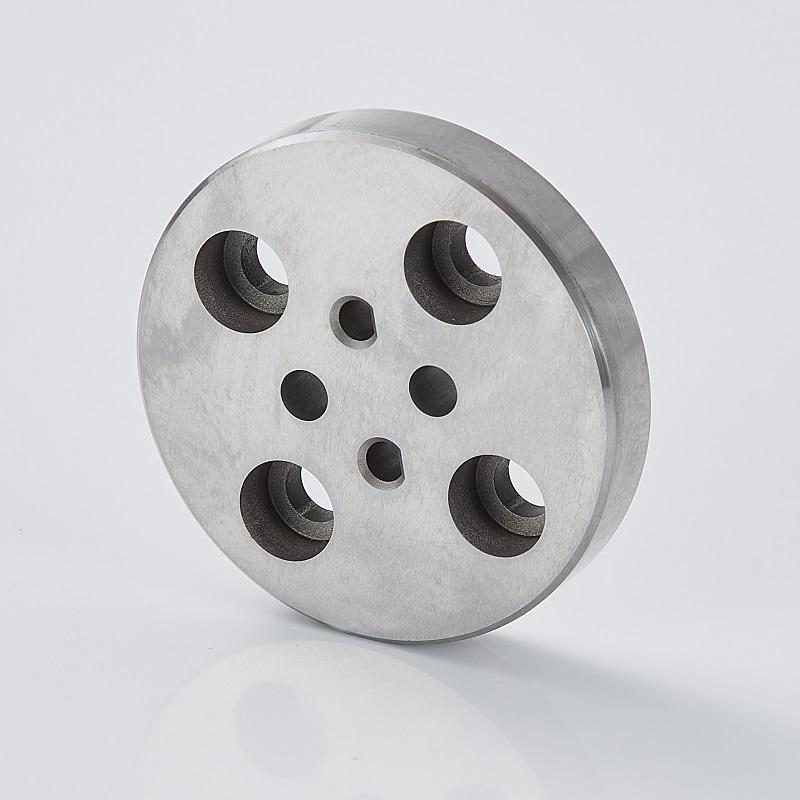

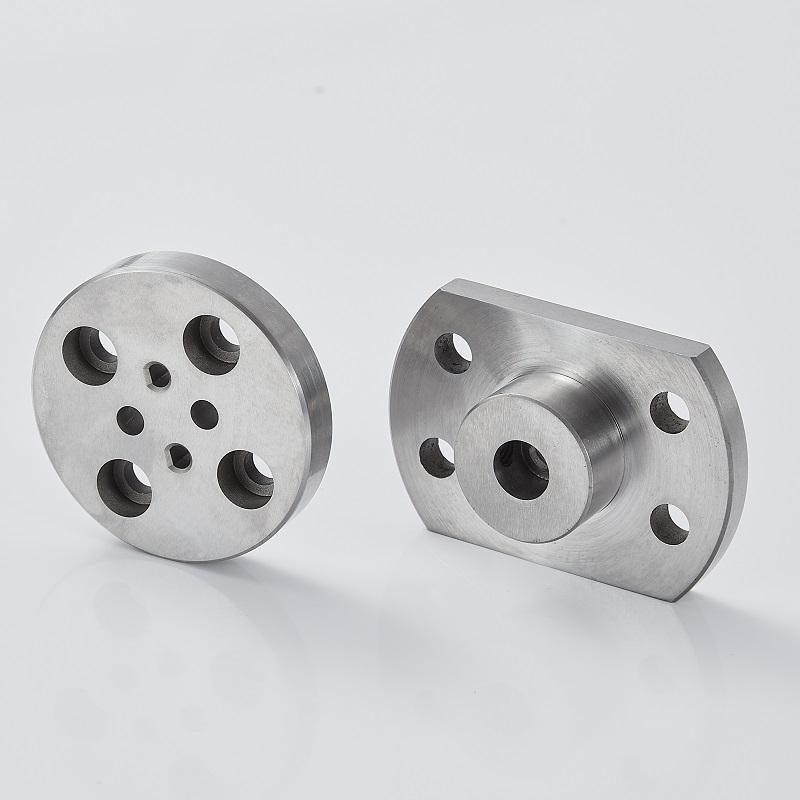

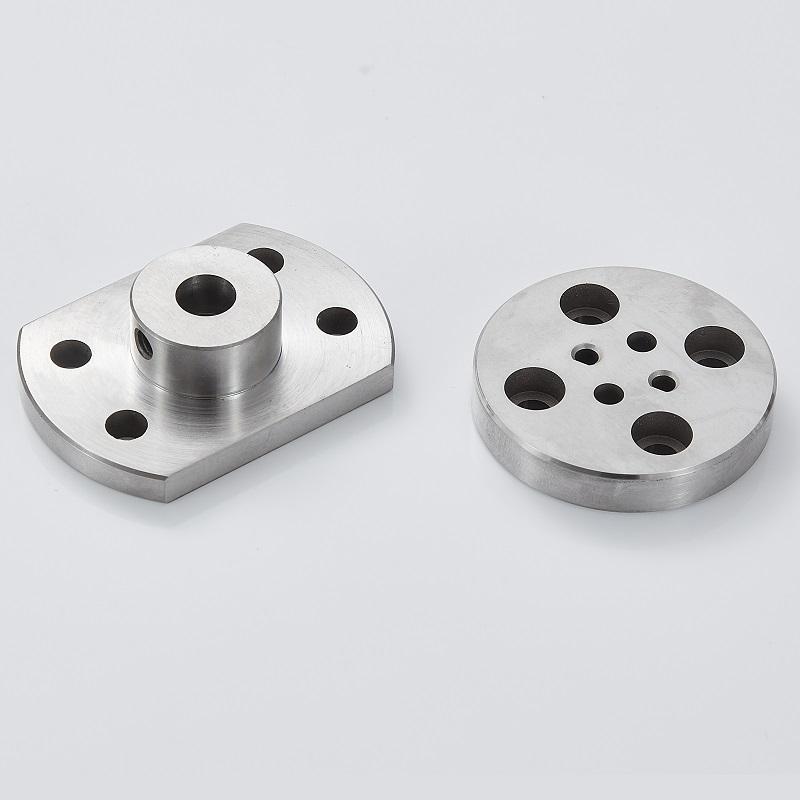

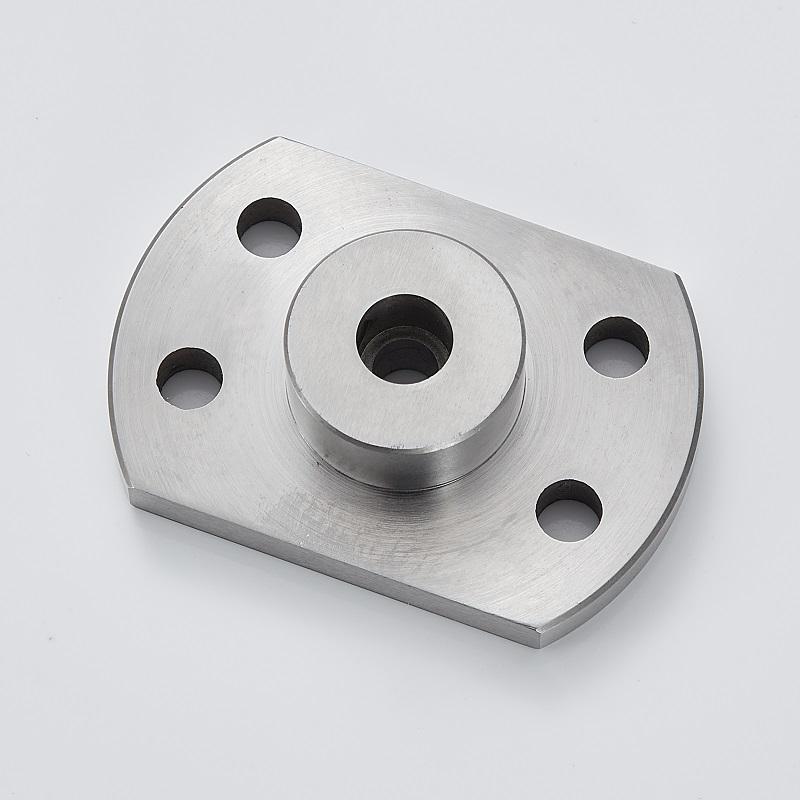

A jig is a specialized tool used in manufacturing processes to ensure consistent and precise production of components. Essentially, it acts as a guiding template that helps position and hold workpieces in place during machining or assembly operations.
Products Data:
| Material: | SKD11 |
| Size: | Customoized |
| Tolerance: | ±0.002mm |
| Processing Method: | Grinding/milling |
| Finishing Roughness: | Ra0.05-Ra0.1 |
| Surface Treatment: | Lapping |
| Application: | Industrial Equipment |
Products Details:
More possible steel materials:
| Grade | DIN EN | Hardness HRC | Brand |
| ASP60 | 66-69 | ASSAB | |
| ASP23 | 1.3344 | 63-65 | |
| UNIMAX | 54-56 | ||
| VANDIS 4 | 61-63 | ||
| VANDIS 10 | 62-64 | ||
| ASP2023 | 1.3344 | 62-66 | ASP ERASTEEL |
| ASP2060 | 67-69 | ||
| S290 | 67-69 | BOHLER | |
| S390 | 64-66 | ||
| S690 | 64-66 | ||
| K390 | 60-62 | ||
| HAP40 | 64-67 | HITACHI | |
| SKH51 | 1.3343 | 62-64 | |
| YXM1 | 62-64 | ||
| SKD11 | 1.2379 | 58-60 | |
| SKD61 | 1.2436 | 52-54 | |
| SLD-magic | 1.2379 | 60-62 | |
| GOA | 56-59 | DAIDO | |
| DC53 | 60-62 | ||
| DHA1 | 50-52 | ||
| 1.3207 | 62-64 | ||
| M2 | 1.3343 | 62-64 | |
| CPM10V | 58-62 |
Using jigs and fixtures in manufacturing processes offers several key advantages:
Improved Productivity: Jigs and fixtures streamline production workflows, reducing setup times and increasing machining efficiency.
Enhanced Accuracy and Precision: By providing consistent guidance and support, jigs and fixtures ensure precise alignment and repeatability of machining operations, resulting in higher-quality finished products.
Cost-effectiveness: The use of jigs and fixtures reduces scrap and rework by minimizing errors, leading to cost savings in material and labor.
Improved Safety: Jigs and fixtures enhance workplace safety by securely holding workpieces in place during machining, reducing the risk of accidents and injuries caused by manual handling or improper positioning.
What else can we do for you?
