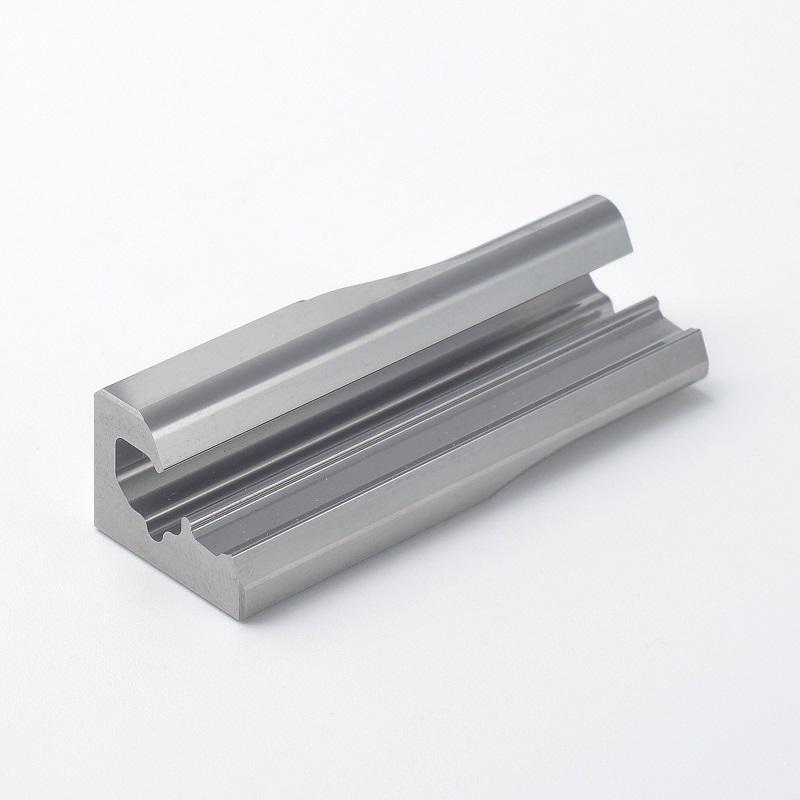

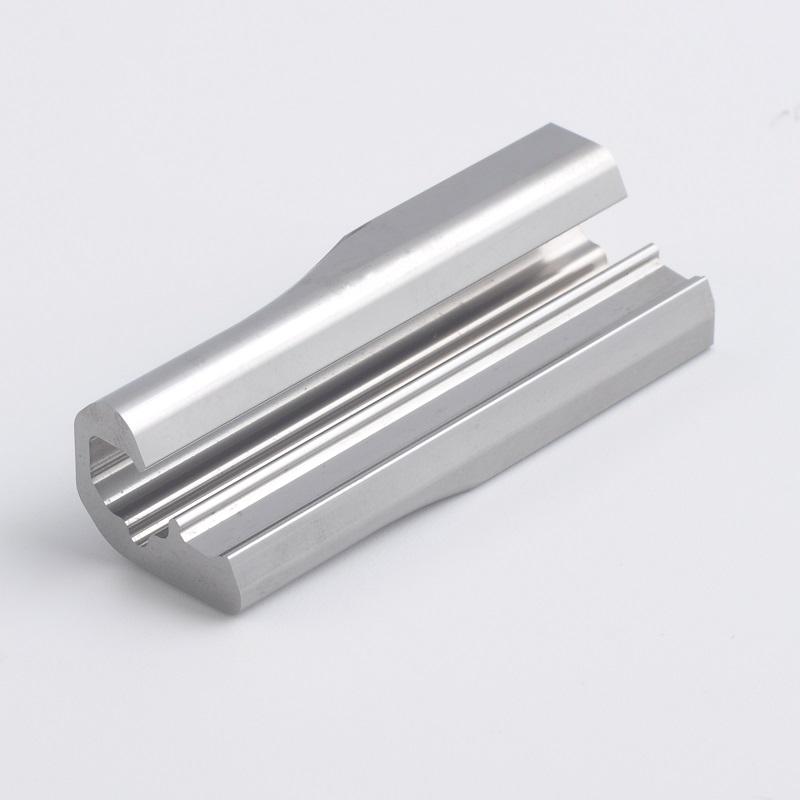

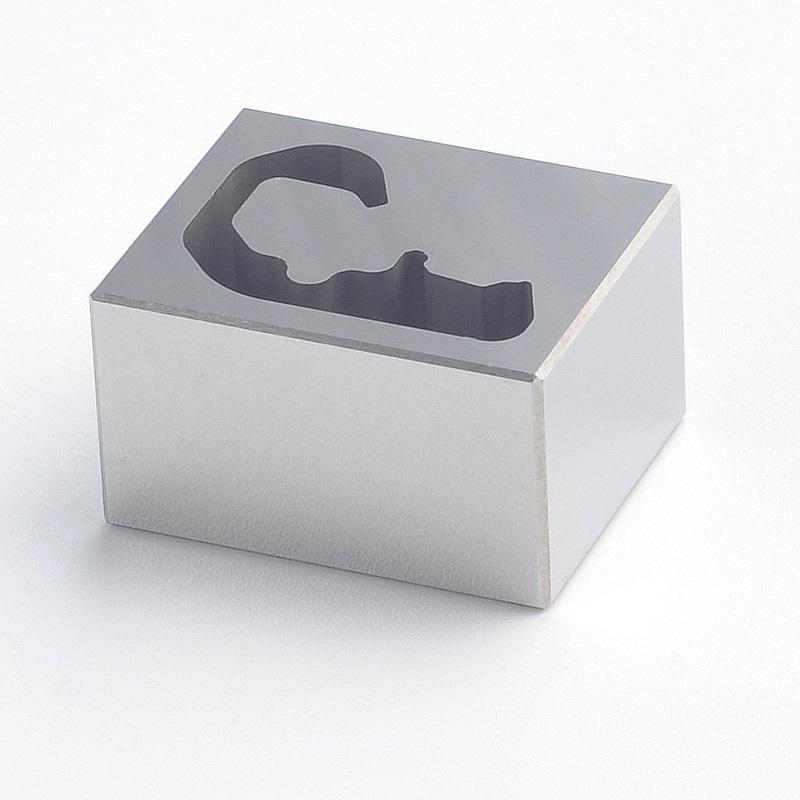

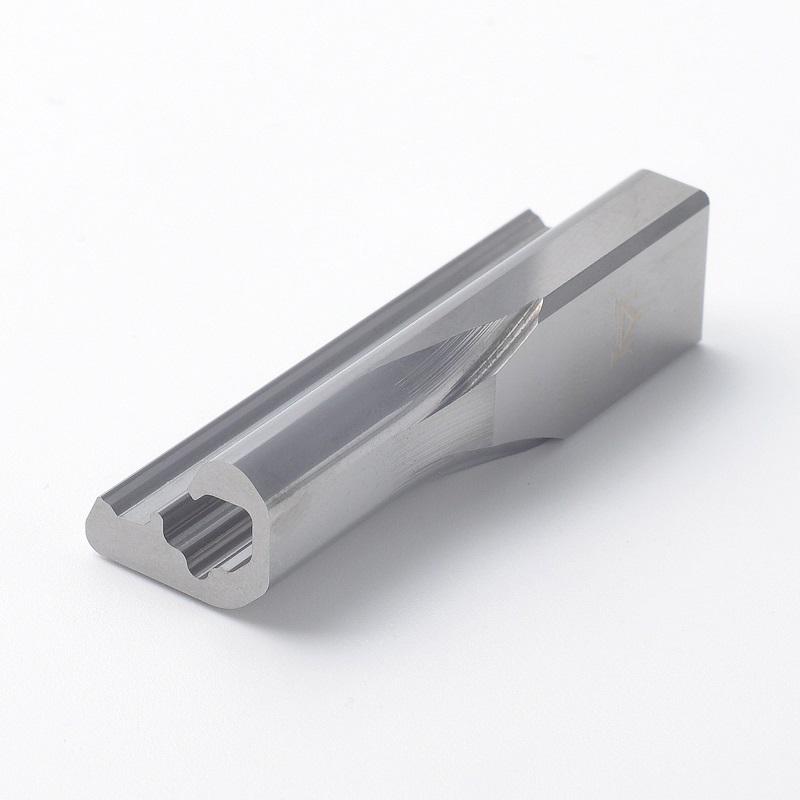

Precision punches and dies for stamping mold. Used in connector mold. Each tool is manufactured with exacting precision to ensure flawless performance, enhancing the quality and reliability of your connector molds.
Precision tungsten carbide punches and die components are critical elements in the manufacturing and metalworking industry. Their exceptional durability, accuracy, and versatility make them ideal for various applications that require high-quality hole punching, shaping, and cutting operations. We focus on high precision stamping components over 17 years.
Item No :
S-004Order(MOQ) :
1PCProduct Origin :
Dong GuanLead Time :
7-10 working daysMaterial :
Tungsten Carbide/Hard Metal/TC/HMCoating :
NoneSize :
CustomizedTolerance :
±0.002mmApplication :
Connector MoldMaterial Certification :
YesQC Report :
YesProducts Description:
Precision tungsten carbide punches and die components are critical elements in the manufacturing and metalworking industry. Their exceptional durability, accuracy, and versatility make them ideal for various applications that require high-quality hole punching, shaping, and cutting operations. We focus on high precision stamping components over 17 years.
Products Data:
Material: | Punch(RD30), Die(RD50) |
Size: | Customoized |
Tolerance: | ±0.002mm |
Clearance/Gap: | 0.005mm/side |
Cutting Length: | 2.5mm |
Taper: | 0.5° |
Processing Method: | Grinding, WEDM |
Finishing Roughness: | Ra0.1-Ra0.2 |
Application: | Stamping Molds |
Stamped Material: | Copper/Stainless Steel |
Products Details:
More possible carbide materials:
Material | ISO Code | JIS Code | Grain Size | Hardness(HRA) | Company | Place of Origin |
CF-H25S | K20-K30 | 1um | 92.1 | CERATIZIT | Austria | |
CF-H40S | K40 | 1-2um | 90.3 | |||
CF-S18Z | K20-K40 | submicron | 92 | |||
TSM33 | K20-K40 | 0.7um | 91.6 | |||
AF1 | 0.3um | 92.5 | SUMITOMO | Japan | ||
FD25 | VF-20 | 92 | Sanalloy | Japan | ||
RF06 | VF-10 | 93 | ||||
RF20 | VF-40 | 90 | ||||
RD30 | VM40 | 1.0um | 90 | |||
RD50 | VM40 | 1.0um | 89 | |||
EF01 | VF-20 | 93.5 | Everlloy | Japan | ||
EF05 | VF-10 | 92.8 | ||||
EF10 | VF-20 | 0.5-0.8um | 92 | |||
MC20 | VC-40 | 0.5-5.0um | 90.5 | |||
KX01 | VF-20 | 0.5-0.8um | 92.5 | |||
KD20 | VF-40 | 0.5-1.5um | 90.4 | |||
G4 | VC-40 | 1.0-8.0um | 89 | |||
G5 | VC-50 | 1.0-8.0um | 88 | |||
CD650 | K40 | 0.6-0.8um | >89 | Kennametal | America | |
K100 | K10 | 92 | CB CARBIDE | Tai Wan | ||
WF30 | K10-K30 | 0.8um | 90 | |||
KG7 | 1um | 89 |
